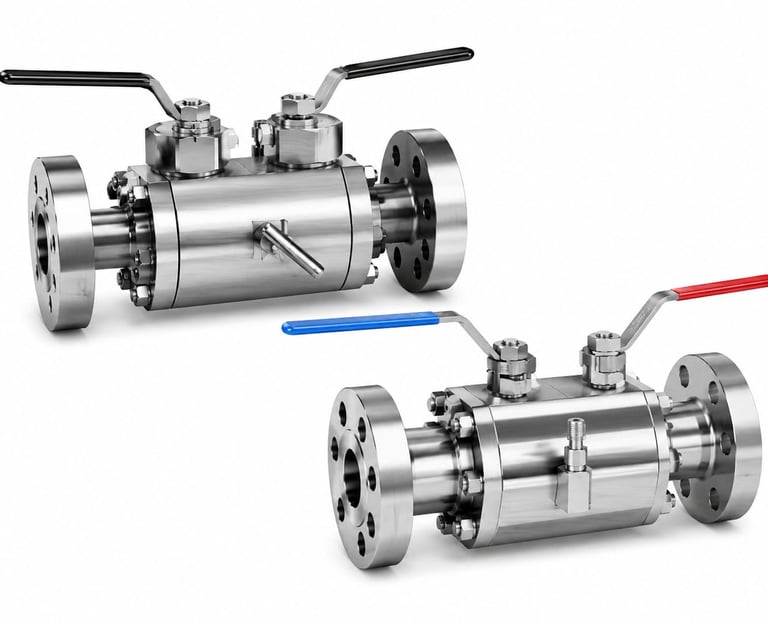

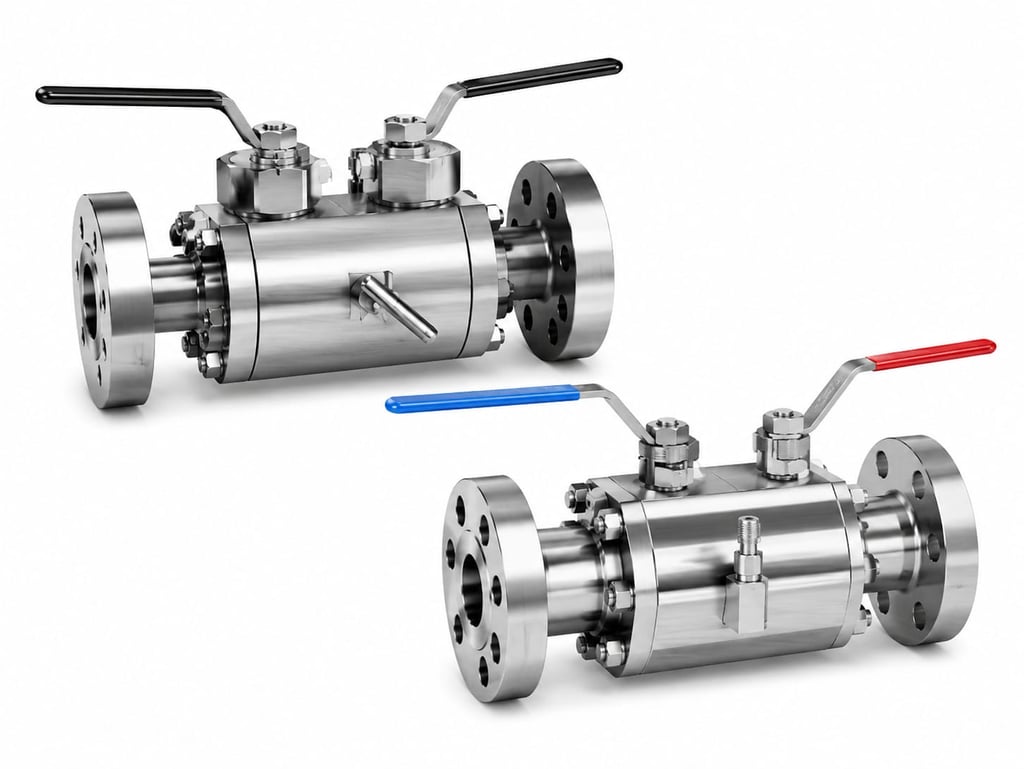

Double Block & Bleed Ball Valves

Key Features:

Provides two sealing surfaces that ensure secure shut-off and enhanced operational safety during maintenance or system operation.

• Double Isolation Capability

• High Sealing Performance

Designed to deliver tight shut-off with minimal leakage, ensuring reliable performance in critical industrial applications.

• Integrated Bleed Function

Includes a bleed mechanism between the sealing surfaces to safely release trapped pressure and verify valve integrity.

• Robust Construction

Manufactured using high-quality materials to withstand high pressure, temperature variations, and harsh operating environments.

• Compact and Space-Saving Design

Combines multiple valve functions into a single unit, reducing piping complexity, installation space, and overall system weight.

• Easy Maintenance and Long Service Life

Engineered for smooth operation and simplified maintenance, providing dependable performance and extended durability.

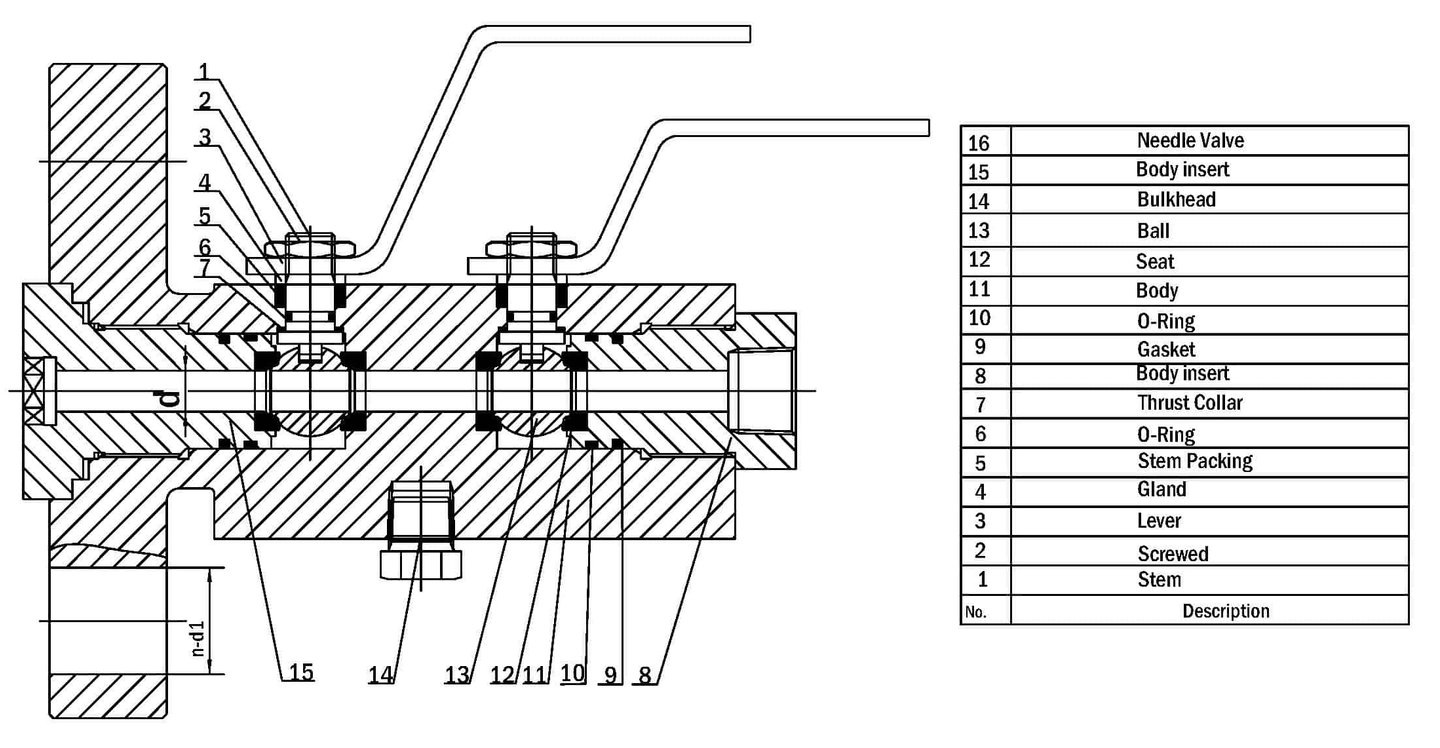

• Compact Design: Ball-Needle-Ball configuration.

• Single/Three-Piece bolted body construction.

• Fire Safe as per API 6F A

• Connection Types: Flange x Flange, Flange x Thread in accordance with ASME B16.5 RF AND RTJ.

• Anti Blow-Out, Non-Rotating 440C Ball Tip Stem Assembly.

• Working Pressures Range: Class 150 to Class 2500 in accordance with ASME B16.5

• Materials of Construction: Stainless Steel, Super Duplex, Duplex, Monel 400, Hastelloy, Inconel, etc.

Product Details:
