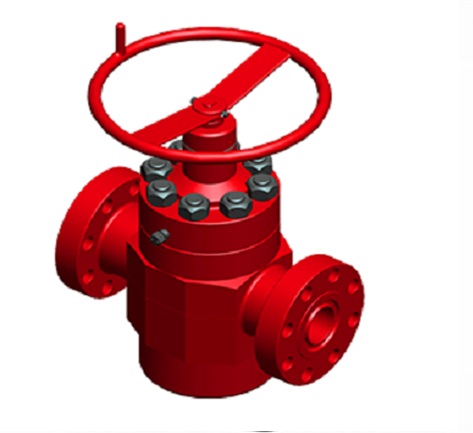

Cast Gate Valve
Product Deatils
| Attributes | Deatils |
|---|---|
| CONSTRUCTION | Bolted Bonnet, Welded Bonnet, Pressure Seal - Solid or Flex Wedge. |
| MAIN DESIGN | ASME B16.34, API 600, API 6D, BS 1414 BS EN 1984. |
| SIZE RANGE | from 2” to 24” |
| PRESSURE CLASS | ANSI 150 / 300 / 600 / 900 / 1500 / 2500 LBS . |
| MAIN MATERIALS | BODY : WCB -WC 6-WC 9-LCB -CF 8- CF 8M-CF 3-CF 3M etc CAST IRON GG 25 OR GGG 40 FOR PRESSURES UP TO PN 16 TRIM : N°1-F6A, N°5-Full Stellite, N°8-Stellite Seat ring, N°10-F316 etc STEM : F6A-F316-F51-17.4 PH Other Materials on Request. |
| CONNECTIONS | SW , NPT , BW , RF , RJ, HUB. |
| OPERATORS | Handwheel, pneumatic actuators, hydraulic or electric servo-controls. |
