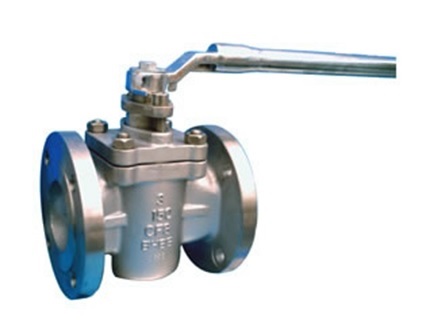

Sleeve Type Soft Sealing Plug Valve


1. The product has reasonable structure,reliable sealing,excellent performance.

2. Its sealing is realized by the sealing face around the sleeve,It has unique 360 degree metal edge for protection and fixing of the sleeve.

3. There is no cavity in the valve for accumulation of medium.

4. Metal edge provides the function of self-cleaning when the plug is rotated,applicable to the operation condition that is glutions and apto smudge.

5. Its characteristic double-dircction flow makes installaiton and use more convenient.

6. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.

Product Deatils

Technical Specification
Structural formatian BC
Driving Manner Wrench wheel,Worm & worm gear pneumatic,electric-actuated
Design standard API599,API6D
Face to face ASME B16.10
Flange end ASME B16.5
Test & Inspection API598.API6D
Note:The size of serial valve connecting flange can be designed according to custmners repuirement.
Part Name Material
Body ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M
Sleeve PTFE
Sleeve ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316
Gasket Flexible graphite+stainless steel、PTFE
Adjusting Gasket ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316
Cover ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M
Adjusting Bolt ASTM A193-B7,A320-B8,A193-B8M
Nut ASTM A194-2H,A194-8,A194-8M
Bolt ASTM A193-B7,A320-B8,A913-B8M
Wrench ASTM A105-WCB
