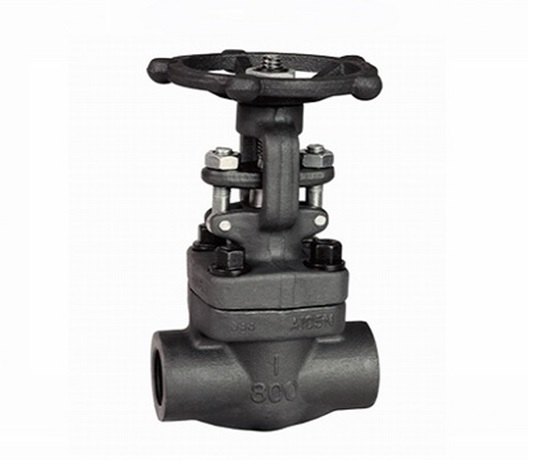

Forged Gate Valve
Product Deatils
| Attributes | Deatils |
|---|---|
| CONSTRUCTION | Bolted Bonnet, Welded Bonnet, Pressure Seal - Solid or Flex Wedge. |
| MAIN DESIGN | ASME B16.34, API 602, BS 5352, ISO 15761, API 600, API 6A. |
| SIZE RANGE | from ½” to 2” |
| PRESSURE CLASS | ANSI 150 / 300 / 600 / 800 / 900 / 1500 / 2500 LBS . |
| MAIN MATERIALS | BODY : A105-LF 2-F5-F11-F22- F304-F316L-F51 TRIM : N°1-F6A, N°5-Full Stellite, N°8-Stellite Seat ring, N°10-F316 etc STEM : F6A-F316-F51-17.4 PH Other Materials on Request. |
| CONNECTIONS | SW , NPT , BW , RF , RJ, HUB. |
| OPERATORS | Handwheel, pneumatic actuators, hydraulic or electric servo-controls. |
