Main Structural Features:
Bolt bonnet OS & Y lifting-round plug.
Opening and closing of the valve is carried out while the sealed surface is taken off, so it will not cause abrasion on the sealed surface. Double direction.

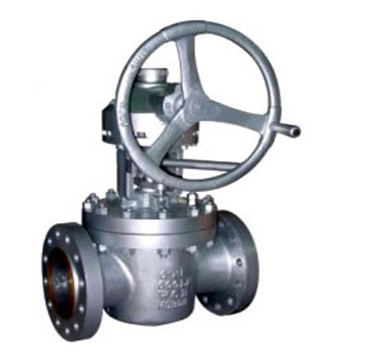

Connection Lift Plug Valve
Product Deatils
| Technical Specification | |
|---|---|
| Design and Manufacture | BC |
| Face to face(end to end) | ANSI B16.10 |
| Flanged connection | ANSIB16.5 |
| Butt welded end | ANSIB16.25 |
| Part Name | Material |
| Body | A216 WCB, A217 WCB, A217 C5, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M |
| Plug | A351 CF8, A351 CF8M, A351 CF3, A351 CF3M |
| Gasket | Flexible graphite+stainless steel/PTFE |
| Cover | A216 WCB, A217 WCB, A217 C5, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M |
| Bolt | A193 B7, A193 B16, A1293 B8, A193 B8M |
| Nut | A194 2H, A194 4, A194 8, A194 8M |
| Packing | Flexible graphite/PTFE |
| Gland | A216 WCB, A216 WC9, A216 C5, A351 CF8, A351 CF8M |
| Wrench | A216 WCB, A216 WC9, A216 C5, A351 CF8, A351 CF8M |
| Yoke nut | A439-D2/Cu-Allog |
| Hand wheel | ASTM A536 Gr.60-40-18 A216 WCB |
